How to Build a Mesh Fence
Print this information in
Check out the
Coalition to Unchain Dogs
for fencing building videos and more information.
Watch a short
video about building a mesh fence:
You can purchase all materials at farm
supply stores such as
Tractor Supply Company or home improvement stores such as
Try asking for donations to buy supplies or pay a fence company. Take pics of
the needy dog and post to social media or a crowdfunding site such
as gofundme.com. Your friends may be very willing to pitch in time,
money, or supplies!
Posts. Choose metal T-posts or wooden posts. You can
get wooden posts cut to specifications. Place posts 6-8 feet apart.
Mesh cloth. It comes in rolls, in different strengths. Your
fence will be stronger if you get a strong mesh (such as the welded
wire below.) Baling wire or wire ties to attach the mesh to the posts.
Baling wire comes in a roll and can be cut into pieces. A heavy duty
staple gun can be used to attach mesh fencing to wooden posts.
setting wooden posts (such as for a gate). Usually one 40-lb bag of concrete can be used
set two posts.
Shovel or post hole digger if setting posts in concrete.
Thin mesh and T-post
Strong mesh fencing
my short video to see the below steps in action.
Decide where you want your fence to go. Mark the lines with spray
paint or push wooden stakes into the ground and tie string from
stake to stake
Lay posts next to
your lines, where you plan to stand them up.
you place the posts to each other, the stronger the fence
will be. 6-8 feet apart is good.
Pound metal T-posts into the ground with a sledgehammer or post driver.
should be put in the ground until the "V" is covered.
Attach mesh to
T-posts with wire ties or baling wire. Attach mesh at the top of the
post, in the middle of
the post, and at the bottom of the post.
fencing as tightly as possible against the posts. One
person should pull the mesh very tightly to the edge of the post
while someone else attaches the mesh to the post.
Be sure the
mesh is all the way to the ground. If the dog digs, you may need
to bury a few inches of fencing.
A gate will work best if
attached to a post set in concrete. You can buy a gate or make one
from wood and mesh
This gate was made with a wooden frame. Mesh fencing was stapled to
The wooden gate is attached to the wood post with a door hinge.
A slide lock was also added to help keep the fence shut. A bike lock
can also be used.
Wood posts were set in the corners, and metal T-posts were used
between corner posts. This fence has kept many 50-70 pound dogs
Two wire ties are used to attach the mesh to the top of the T-post. Materials:

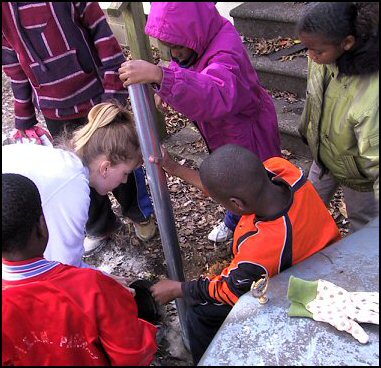

Strong wooden post
One 40 lb. bag of concrete mix is enough for 2 posts. You can use quick-set.
Stick or dowel
Water from a bucket or hose
Shovel or post-hole digger
Dig a hole. The post needs to be at least 1 1/2 or two feet underground. Put a few rocks in the bottom of the hole, then set the post in the hole. Itís easiest if you have someone to hold the post in the center of the hole.
Pour about one-third of the concrete mix into the hole. Pour it around the post. Pour about half a gallon of water into the hole and stir the concrete around with the stick.
Keep adding concrete mix and stirring in water in until the hole is filled with the concrete mix.
Refer to the directions on the package.
Cover the concrete with the dirt from the hole. Pile dirt or rocks around the bottom of the post to keep it in place while the concrete sets.
In 24 hours, you post should be set with regular concrete. With
quick-set, your post will be ready in an hour.
